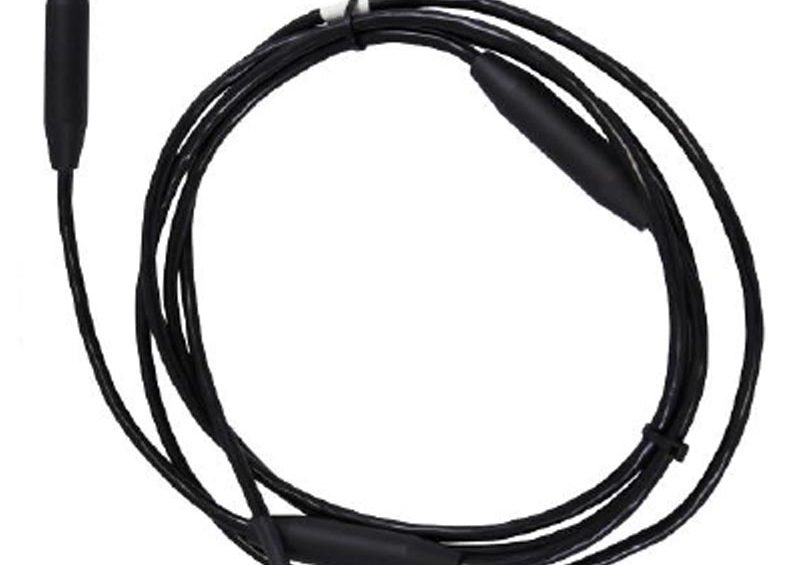

Frost depth sensor

Frost depth sensor

  • Temperature sensor with high accuracy
  • Connects directly to TrackIce solar module
  • Temperature sensor for e.g. frost depth measurement

100% solar powered
The temperature sensor is powered and connected via the RS232 interface to the TrackIce NB Solar Module. The Solar Module is 100% powered by solar energy and communicates with Narrowband IoT and is therefore not dependent on any type of fixed infrastructure.

Temperature measurement with accuracy
The sensor is used to measure temperature in different media. It is easily mounted by connection to the Track Ice Solar Module.

Example of a diagram from Mowic Online on frost depth over a season (Nov-March).

S225 Temp sensor, frost depth sensor
CommunicationSDI-12
Range-55°C to +85 °C
ConnectorLumberg 030805
Accuracy±0.2 °C
Length of cableCustomized (2-150 meters)
Number of sensors per cableCustomized (10-36 pcs) Minimum distance 15 cm
Download PDF
CategoriesSensors
By

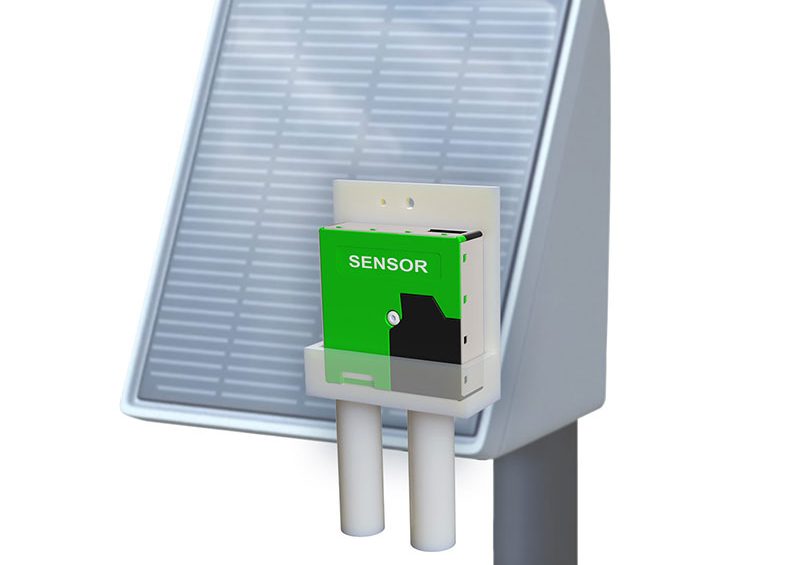

Particle sensor

Particle sensor

  • Solar module with particle sensor
  • Narrowband IoT
  • 100% solar powered
  • Small and cost-effective

Completely independent of fixed infrastructure
The particle meter is integrated in Track Ice NB Solar Module and is 100% powered by solar energy. The module communicates with Narrowband IoT. Therefore is the module not dependent of any type of fixed infrastructure.

Small and cost-effective
TrackIce NB Solar module is a small and very easy to install unit that enables particle measurement in places where you did not think it was possible.

Narrowband IoT
The IoT network is based on the 4G network, which means it has very good protection against interference from other technologies. The technology is future-proofed with a global standard.


Solar module
Range-10°C to +70 °C
Size180 x 180 x 90 mm
Battery4.2V, 5Ah. LiPo
HousingIP65

Particle sensor
Particle detection size range PM 1.0 PM 2.5 PM 4 PM 10 in μg/m3
Particle detection size rangePM 0.5 PM 1.0 PM 2.5 PM 4 PM 10 in pcs/ml
Mass concetration precision+/- 10% @ 100 to 1000 μg/m3
Measurement rangeEvery 15 minutes
Download PDF
CategoriesSensors
By

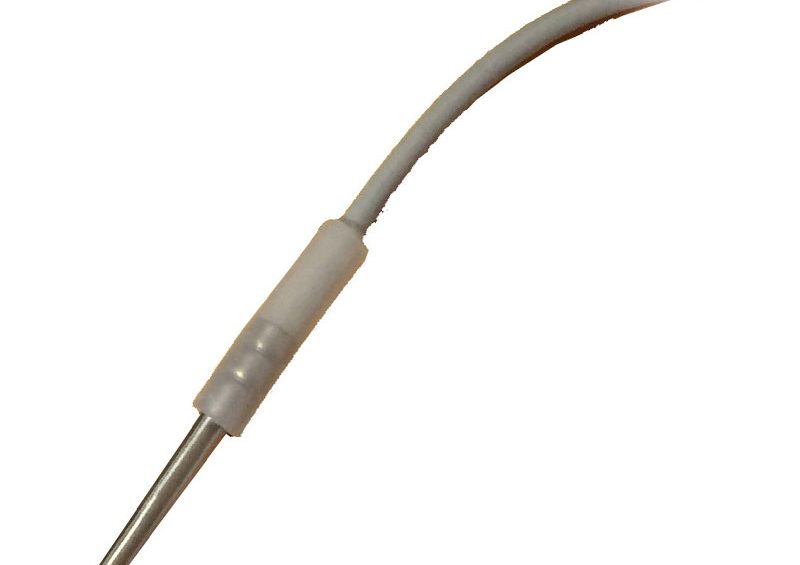

Temperature sensor

Temperature sensor

  • Temperature sensor with high accuracy
  • Connects directly to TrackIce Solar Module
  • 4-wire PT100

Completely independent of fixed infrastructure
TrackIce NB Solar module is 100% powered by solar energy and communicates with Narrowband IoT and is therefore not dependent on any type of fixed infrastructure. The solar module supplies power to the temperature sensor.

Temperature measurement with accuracyThe sensor is used to measure temperature in different media. It is easily mounted by connection to the solar module via the Lumberg connector on the sensor.

Measurement data is not affected by the length of the cable between the solar cell module and the temperature sensor, provided that the maximum cable length is not exceeded.

Sensor type4-wire PT100
Range-40°C to +55 °C
ConnectorLumberg 030805
Accuracy±0.2 °C @ 0 °C
Length of cable8-15 meters
Download PDF
CategoriesSensors
By

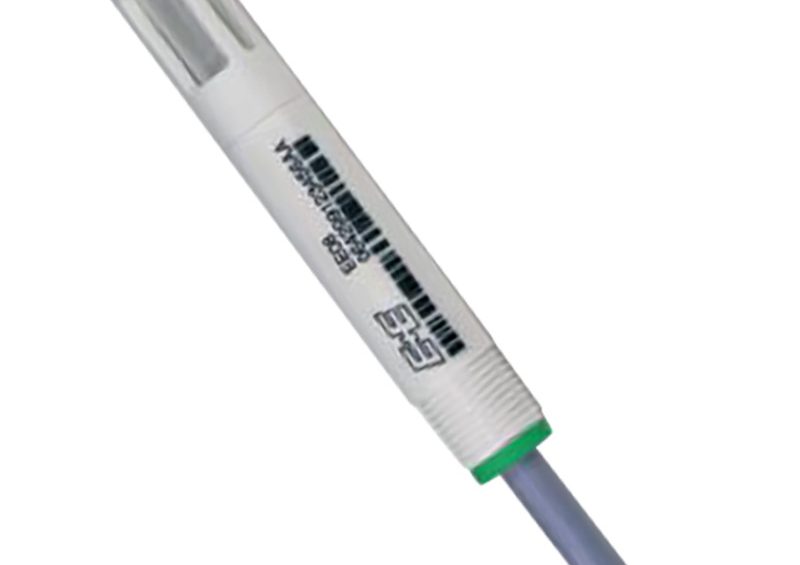

Temperature & humidity

Temperature/RH sensor

  • 0-100% RH measurement
  • Air temperature and humidity in the same sensor
  • Sensor with high accuracy in miniature format

A high-precision temperature and humidity sensor. The sensor is connected to and powered by the TrackIce NB solar module. The sensor is mounted in the radiation protected HA010506 to ensure correct measurements.


Relative humidity
Sensor typeHC101
Range0-100% RH (-40 to+80°C)
Digital outputI²C
Accuracy±2 % RH (0-90 %) ±3 % RH (90-100 %)

Air temperature
Sensor typePt1000 (DIN A)
Range-40 to+80°C
Digital outputI²C
Accuracy
Download PDF
CategoriesSensors
By

Surface Temperature

vägtemperatur

Surface Temperature Sensor

  • NarrowBand IoT
  • Sends data directly to central systems
  • 100% wireless
  • Battery-powered
  • Stand-alone

Stand-alone
TrackIce NB Surface Temperature Sensor sends data directly to central systems. The sensor uses Narrowband IoT and is therefore completely independent of any type of fixed infrastructure.

Battery-powered
TrackIce NB Surface Temperature Sensor is battery-powered and that enables measurement of surface temperature in places where you did not think it was possible. The battery is expected to last for at least 5 years.

100 % wireless
The TrackIce system is designed to minimize installation time and effort, to reduce total cost of ownership.

Narrowband IoT
The Narrowband IoT network is based on the 4G network, which means it has very good protection against interference from other technologies. The technology is future-proofed with a global standard.

vägtemperatur
Accuracy+/- 0,2°C vid 0°C
SizeØ: 70mm, height: 150mm
BatteryHigh performance primary cell 13Ah@3.6V
Download PDF
CategoriesSensors
By

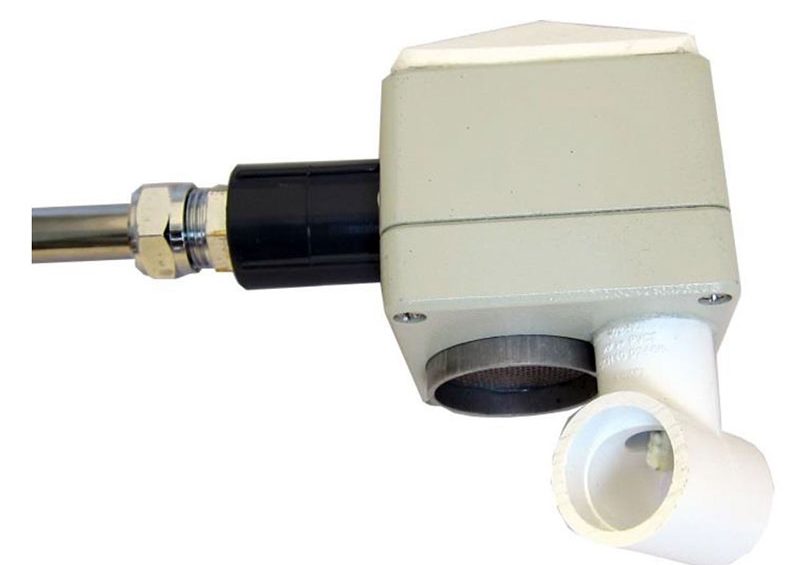

Level sensor

Level sensor

  • Uses ultrasonic pulses
  • 100% solar powered

The level sensor uses ultrasonic pulses to measure the distance to the target, for example snow depth or water level. The integrated temperature sensor automatically compensates for the velocity changes in the air due to temperature changes.

100% solar powered
The level sensor is powered and connected via the RS232 interface to the TrackIce NB Solar Module. The Solar Module is 100% powered by solar energy and communicates with Narrowband IoT and is therefore not dependent on any type of fixed infrastructure.

Sensor typeUltrasonic ranging
Beam width22°
Range0.5 to10 m
Accuracy+/- 1 cm or 0.4% of the distance
Operating temperature-40° C till + 55 °C
Size8 x 8 x 13 cm
Weight0.6 kg
Download PDF
sensor-konduktivitetCategoriesSensors
By

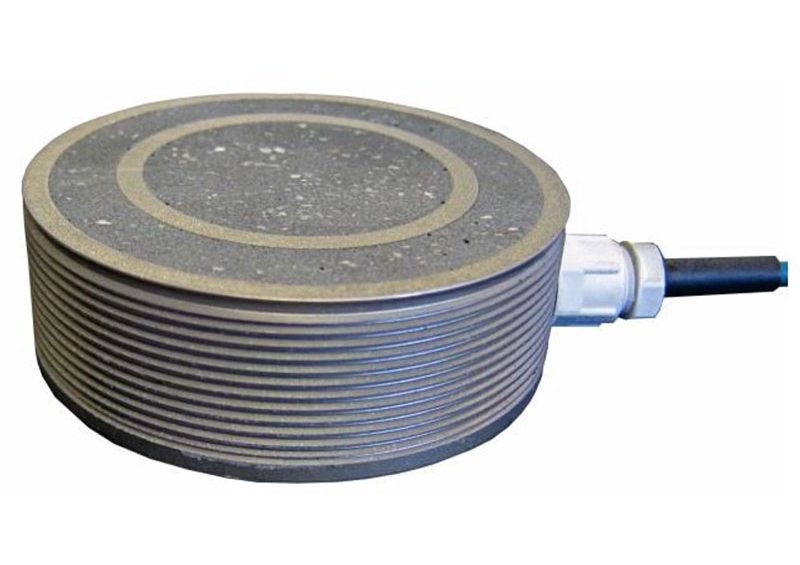

Surface Temperature & Conductivity

sensor-konduktivitet

Surface Temperature & Conductivity

  • Measures conductivity and temperature
  • Narrowband IoT
  • Sends data directly to central systems
  • Battery-powered

Conductivity
The Conductivity Sensor measures the conductivity (of the liquid on the surface of the sensor). The value provides information about the surface status wet/dry. This sensor is always installed together with TrackIce Surface Temperature Sensor, which measures the surface temperature.

Stand-alone
TrackIce NB Conductivity and Surface Temperature Sensor sends data directly to a central system. The sensor uses Narrowband IoT and is therefore completely independent of any type of fixed infrastructure.

Battery-powered, 100% wireless
The sensor is battery-powered wich enables measurement of conductivity and surface temperature in places where you did not think it was possible. With measurements made every 15 min the battery is expected to last for at least 5 years. The TrackIce system is designed to minimize installation time and effort, to reduce total cost of ownership.

Narrowband IoT
The NB IoT network is based on the 4G network, which means it has very good protection against interference from other technologies. The technology is future-proofed with a global standard.

sensor-konduktivitet
sensor-konduktivitet
sensor-konduktivitet
Accuracy+/- 0,2°C vid 0°C
SizeØ 70mm height 150mm and Ø 88mm height 30mm
BatteryHigh performance primary cell 13Ah@3.6V
Download PDF
CategoriesSensors
By

Camera

Solcellenhet och kamera

CAMERA

  • Solar module + camera
  • Outdoor camera IP66
  • Nightvision up to 20 meters
  • LTE-M wireless communication
  • 100% solar powered

100% wireless and solar powered
 Track Ice Solar module is 100% powered by solar energy and communicates with LTE-M and is therefore not dependent on any type of fixed infrastructure. The TrackIce Solar module power-supplies the camera.

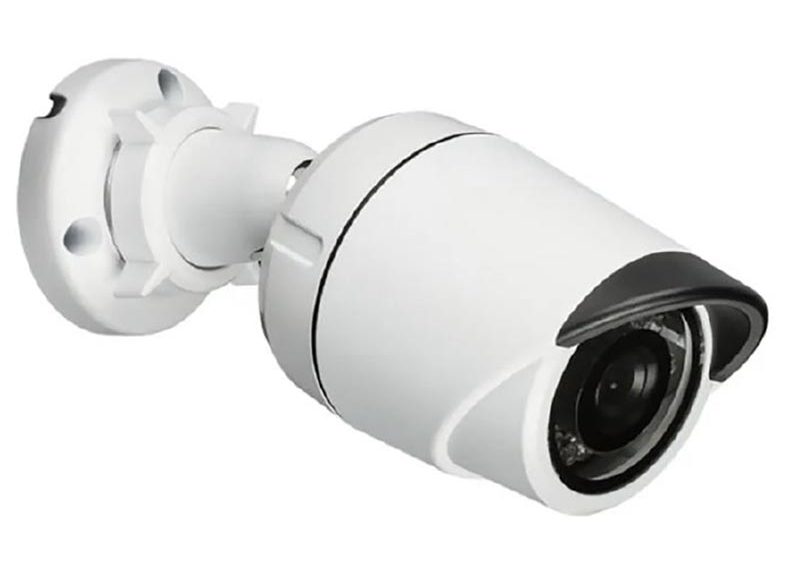

Outdoor camera
 The camera is IP66-classed. The built-in lightning provides night vision up to 20 meters. The picture is updated every hour.

Example Nightvision
Example daytime
Solcellenhet och kamera


Solar module
Size180 x 180 x 90 mm
Battery16Ah, 3,7V
Solar module6V, 4.5W
HousingIP65

Camera
SizeØ 65 x 164 mm
HousingIP66
Range Daytime-20°C till +50 °C
Range Nightvision-10°C till +50 °C

Download PDF
CategoriesSensors
By

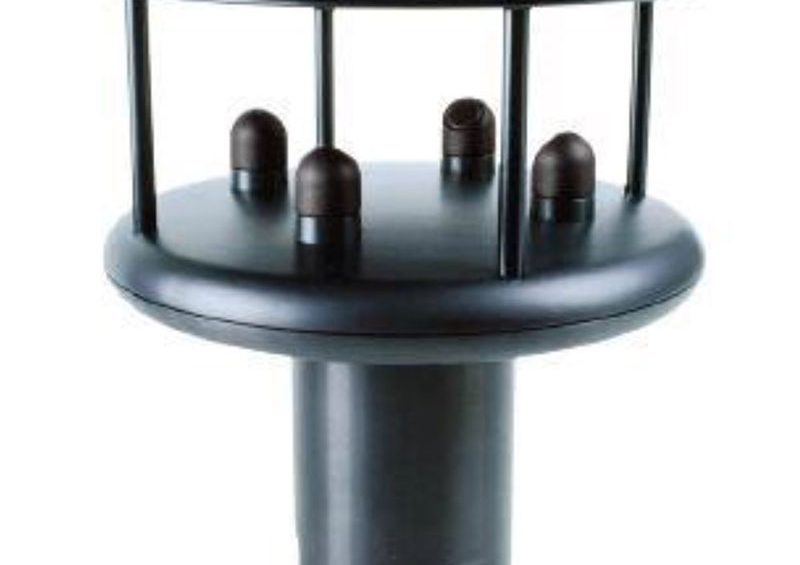

Wind sensor

WIND SENSOR

  • Compact wind speed and wind direction sensor
  • Maintenance-free, solid state
  • 100% solar powered

The wind sensor uses proven ultrasonic technology to measure wind speed and wind direction. The sensor is maintenance free, without moving parts.

100% solar powered
The sensor is powered and connected via the TrackIce NB Solar Module. The Solar Module is 100% powered by solar energy and communicates with Narrowband IoT and is therefore not dependent on any type of fixed infrastructure.

Operating temperature-35°C to +70°C
Size142mm x 160mm
Weight0,9kg

Wind speed
Interval0-60 m/s
Accuracy±2% @ 12 m/s
Resolution0.01 m/s
Response time0.25 sec
Threshold0.01 m/s

Wind direction
Interval0-359°
Accuracy±3% @ 12 m/s
Resolution1°
Response time0.25 sec
Download PDF
CategoriesSensors
By

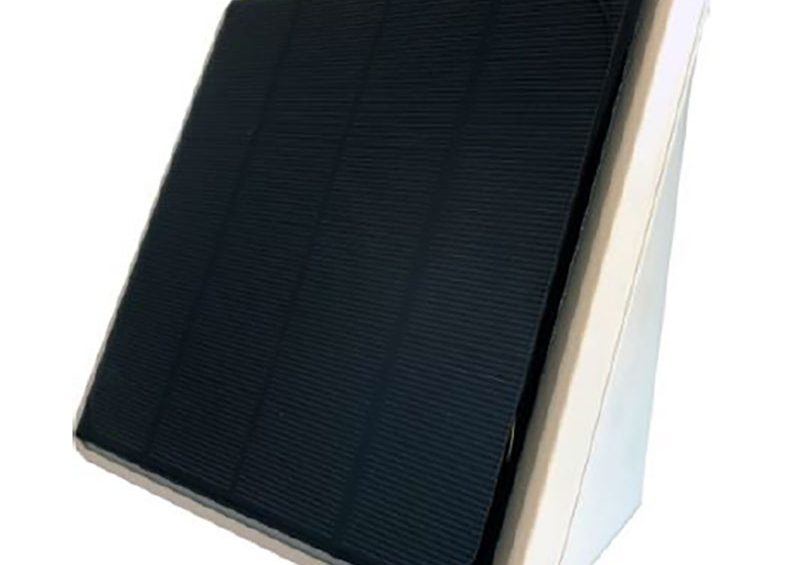

Solar module

Solcellenhet

Solar module

  • Connect different kinds of sensors
  • NarrowBand IoT
  • 100% solar powered
  • Small and cost-effective

100% wireless
TrackIce NB Solar Module is 100% powered by solar energy and communicates with Narrowband IoT and is therefore not dependent on any type of fixed infrastructure. TrackIce NB Solar Module powersupplies connected sensors.

Small and cost-effective
TrackIce NB Solar module is a small and very easy to install unit that enables measurement of, for example, frost depth in places where you did not think it was possible.

Narrowband IoT
The Narrowband IoT network is based on the 4G network, which means it has very good protection against interference from other technologies. The technology is future-proofed with a global standard.

Available sensors

  • Air Temp/RH
  • Road temp (surface)
  • Conductivity
  • Wind (ultrasound)
  • Level sensor (snow, water)
  • Fluid level sensor
  • Particle
  • Camera (outdoor)
Solcellenhet
Range-40°C till +70 °C
Size180 x 180 x 90 mm
Battery4.2V, 5Ah. Li-Po
HousingIP65
